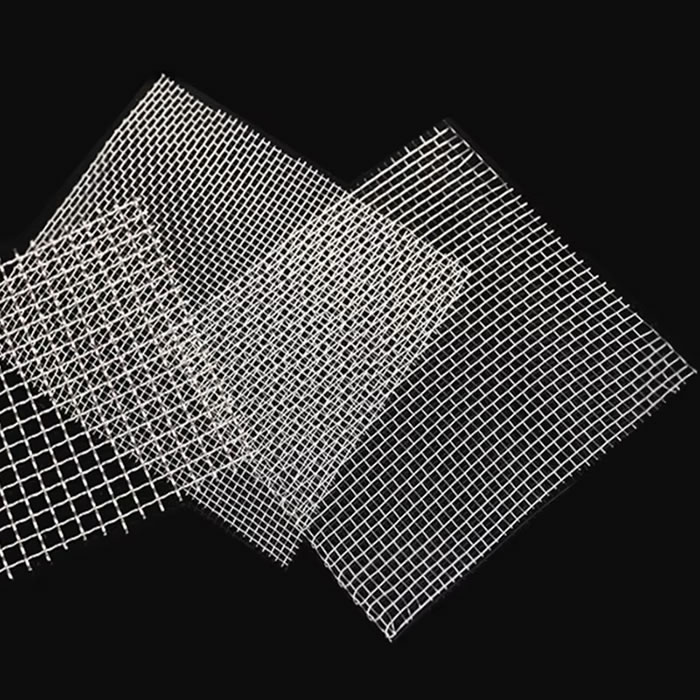

Stainless steel wire mesh, also referred to as woven wire mesh or stainless steel weaving mesh, is a highly versatile material celebrated for its exceptional resistance to corrosion, robust durability, and formidable strength. This mesh is meticulously crafted by interlacing stainless steel wires into precise, uniform patterns, resulting in consistent apertures and dimensions that cater to a multitude of industrial and commercial applications.
Applications:
- Filtration and Separation: Extensively utilized in sectors such as pharmaceuticals, chemical processing, food and beverage production, and oil and gas industries for tasks including filtration, sieving, and separation processes.
- Architectural and Design: Employed in applications like window screens, fencing, and various design elements where both functionality and aesthetic appeal are paramount.
Available Grades:
- 304 and 304L: These grades are known for their excellent corrosion resistance and good mechanical properties, making them suitable for general-purpose applications.
- 316 and 316L: Incorporating molybdenum, these grades provide enhanced resistance to pitting and crevice corrosion, making them ideal for marine and chemical environments.
- 310s and 904L: High-alloy grades that offer superior performance in high-temperature and highly corrosive environments.
- 430: A ferritic stainless steel known for good corrosion resistance and formability, often utilized in automotive and architectural applications.
Special Material Options:
For specialized requirements, materials such as Inconel, Monel, Nickel, and Titanium are available, providing unique properties like high-temperature resistance and exceptional corrosion resistance.
Specifications:
- Wire Diameter Range: Spanning from 0.02 mm to 6.30 mm, accommodating various strength and flexibility needs.
- Hole Size Range: Ranging from 1 mesh to 3500 mesh, offering precise control over particle size retention.
- Weave Types: Includes Plain Weave, Twill Weave, Dutch Weave (Plain and Twill), Reverse Dutch Weave, and Multiplex Weave, each providing distinct characteristics suited to specific applications.
- Mesh Dimensions: Standard widths up to 2000 mm, with lengths available in 30 m rolls or custom cuts starting from a minimum of 2 m.
- Mesh Forms: Offered in both rolls and sheets to meet diverse application requirements.
